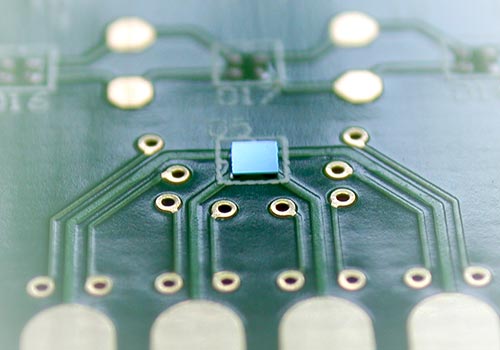

Close up of epc3x

Light barrier ranging from millimeters to tens of meters

Light curtain

Light, smoke, liquid, leveling, triangulation detectors

Position detection (rotary, linear, angle etc.)

Differential measurement

Linear photodiode arrays

Remote control of Hi-Fi, TV sets and other equipment

Heart beat monitors

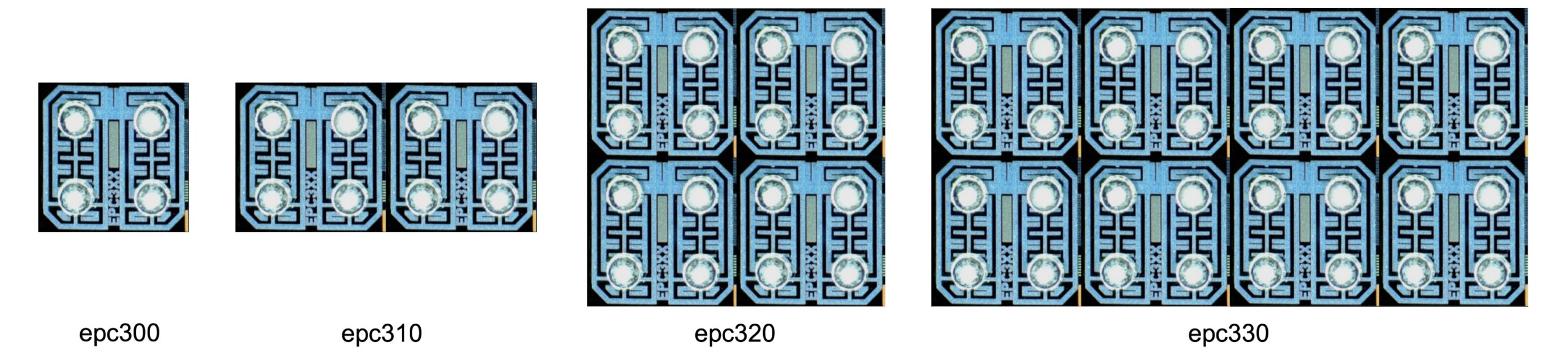

epc300 to epc330 – high sensitive Photodiode Arrays

The epc3xx family products are high-sensitive photodiode arrays for light-barrier, light-curtain and the like applications with following configurations: 2×1, 4×1, 4×2, 8×2 elements. They are designed to be used in a reverse-bias mode with a bias voltage between 1.5 and 20 Volts. The individual diodes feature a very high quantum efficiency of 90% in the near IR range and a response time down to less than 100ns. The advanced Chips Scale Package (CSP) makes them ideal for miniaturized systems where a minimal space requirement is key. This device allows the design of short to long range light barriers from a few millimeters up to tens of meters.
