- Very high photo-sensitivity
- On-chip ADC and control
- LED/VSCEL driver integrated
- Up to 100KLux sunlight supression
- Extended distance range (10m +)
- Reduced power consumption
- Ultra small CSP package
- No companion chip needed
- System on chip
- Unique CCD technology
- Less BOM part count, less cost
Product | epc611 | epc635 | epc660 | Conditions |
---|---|---|---|---|
Pixel field | 8 x 8 | 160 x 60 | 320 x 240 | |
Pixel pitch | 20 x 20 µm | 20 x 20 µm | 20 x 20 µm | 100% fill factor |
Photosensitive area | 0.16 x 0.16 mm | 3.20 x 1.20mm | 6.40 x 4.80 mm | |
Packaging | CSP24 | CSP44 | CSP68 | |
Size | 2.7 x 2.8 x 0.25 mm | 6.3 x 4.2 x 0.25 mm | 9.7 x 8.7 x 0.25 mm | Self-alignment to opt. axis |
Frame rate | up to 8'000 fps | up to 512 fps | up to 158 fps | Rolling mode,tINT = 100µs 4 DCS mode,tINT = 100µs |
Output data | up to 18 bit DCS | 12 bit DCS | 12 bit DCS | |
Data interface | SPI up to 16MHz | TCMI up to 80MHz | TCMI up to 80MHz | |
Control interface | SPI | I2C | I2C | |
Power consumption | 155mW | 300mW | 750mW | at full frame rate |
Products | Function | Application |
---|---|---|

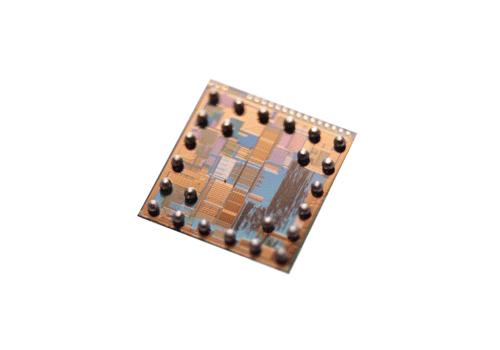

epc611 | 3D-TOF-imager (8 x 8 Pixel) |
7 TOF and 2 grayscale operation modes for wide range of applications: High speed and high precision range finder, Altimeter for drones, Parking lot sensor, Simultaneous localization and mapping (SLAM) sensor, Cleaning robots, Simple gesture detection, Door opening and safety sensor, Machine control and safety sensor |
epc635 | 3D-TOF-imager (160 x 60 Pixel) |
Mobile postal parcel size measurement, People detection and counting, Machine safety, Helicopter near terrain flight assistance, Car collision avoidance systems, Pedestrian detection and breaking systems, man-Machine interface, Gesture control, Body size measurement, General volumetric mapping, Mobile robotics, Simultaneous localization and mapping (SLAM) |
epc660 | 3D-TOF-imager (320 x 240 Pixel) |
People detection and counting, Mobile postal parcel size measurement, Machine safety, Helicopter near terrain flight assistance, Car collision avoidance system, Pedestrian detection and breaking systems, Gesture control, Body size measurement, General volumetric mapping, man-Machine interface |
