The TOFrange-611 is a industrial range finder based on the the time-of-flight principle. It measures the distance to an object by the time it takes for a pulse of light to travel to an object and back to the sensor. In order to do this, the sensor is equipped with a LED light source, high frequency electronics and a veryRead more

epc901 Evaluation Kit The Evaluation Kit epc901 is a fully assembled and tested system for the evaluation of the the epc901 line imager. The Evaluation Kit consists of an epc901 camera module, a mainboard, cables and software. The “Evaluation” main section is equipped with a STM32 ARM Cortex micro controller. This section provides a powerful and flexible development environment forRead more

epc660 Evaluation Kit The epc660 Evaluation Kit is a fully assembled and tested camera system designed for the evaluation of the epc660 Time of Flight (TOF) imager. The foundation of this kit is the DME 660 distance measurement camera which provides all necessary hardware to operate the epc660 imager chip, including both the camera lens and illumination. The system isRead more

Light barriers ranging from millimeters to tens of metersSmoke detectorsLiquid detectors epc111/112 – Fully integrated standalone Light-barrier Driver & Receiver epc110 – Fully integrated configurable Light-barrier Driver & Receiver epc120 – Fully integrated Light-barrier Driver & Receiver with 2-Wire Bus Interface The epc 111 / epc112 is a general purpose, fully integrated self-contained CMOS circuit family to be used inRead more

Light barriers ranging from millimeters to tens of metersLight curtainsSmoke detectorsLiquid detectors epc100 / epc101 – Light-Curtain Device with 2-Wire Bus Interface The epc100 / epc101 chip set is a general purpose CMOS integrated circuit for light-curtain applications. The epc100 is used on the receiver side (Rx) whereas epc101 is on the emitter side (Tx). Up to 1'023 devices mayRead more

IR sensorLight barrierIR camera epc-bp860 – Optical IR bandpass filter 860nm General purpose optical IR bandpass filter at centre wavelength of 860nm. It is deposited on thin glass carrier. The filter is designed as a single peak window filter for the wavelength range of 300 – 1050nm. It is well adapted for applications with high power LED of 850nm (e.g.Read more

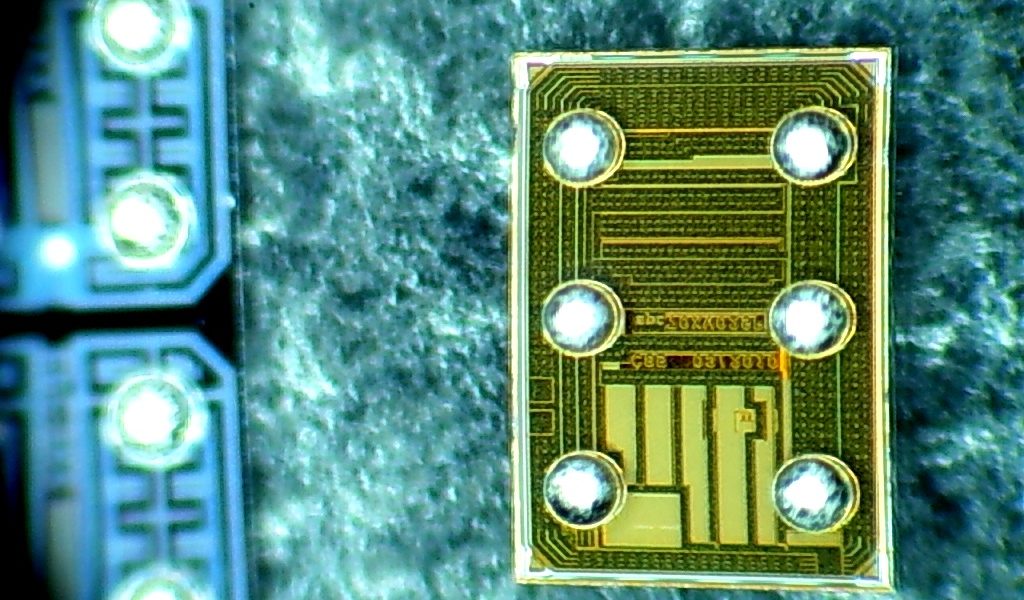

PLCSensorsControllers epc700 / epc702 Output-driver, low Side Switch epc701 / epc703 Output-driver, high Side Switch The epc70x family products are general purpose CMOS power switches for 24V interfaces. The devices are capable to drive a load of 50mA at 30VDC. If higher driving current is necessary or the output voltage shall be higher than 30VDC, the chips can be usedRead more

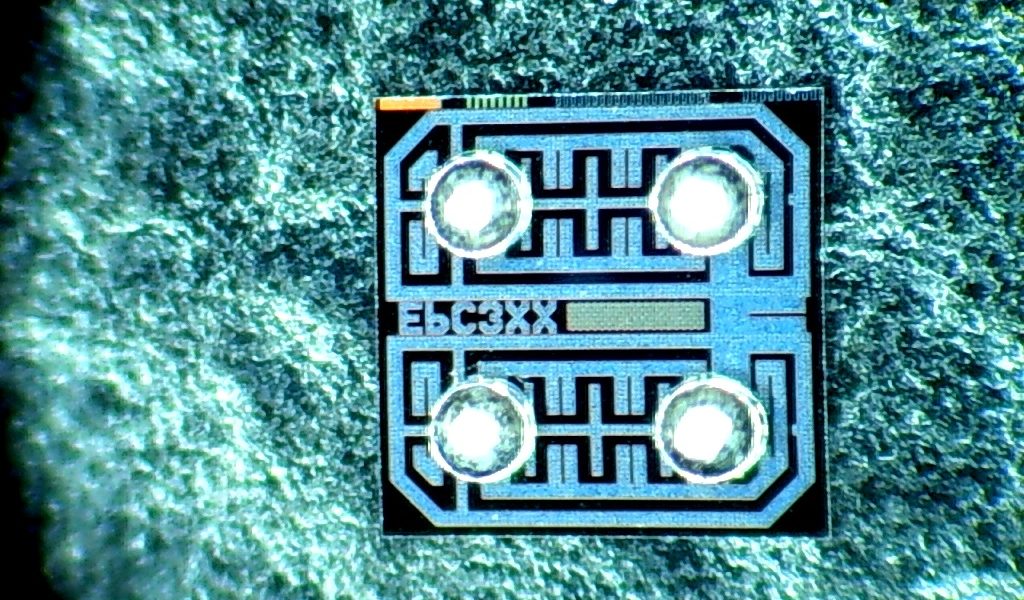

Light barrier ranging from millimeters to tens of metersLight curtainLight, smoke, liquid, leveling, triangulation detectorsPosition detection (rotary, linear, angle etc.)Differential measurementLinear photodiode arraysRemote control of Hi-Fi, TV sets and other equipmentHeart beat monitors epc300 to epc330 – high sensitive Photodiode Arrays The epc3xx family products are high-sensitive photodiode arrays for light-barrier, light-curtain and the like applications with following configurations: 2x1,Read more

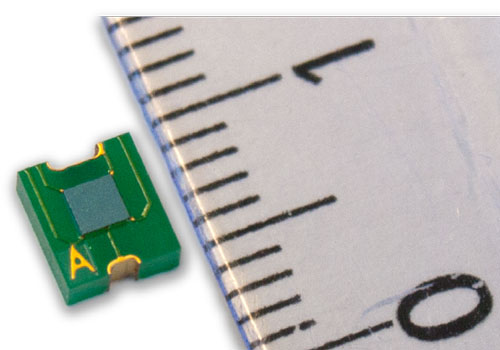

Liquid detectorsLight curtainsLight barriers ranging from millimeters to tens of metersSmoke detectorsOximetersPosition detection (rotary, linear, angle, etc.) IR remote control of Hi-Fi, TV sets and other equipment epc200 – high sensitive Photodiode The epc200 is a high-sensitive, high-speed, low-cost photodiode for light-barriers, light-curtains and the like applications. They are designed to be used in a reverse-bias mode with a biasRead more

epc901 CCD line sensor 1024×1 pixel The epc901 IC is a high-performance CCD line sensor capable of storing a total of 4 frames in the frame store elements for ultra high-speed image acquisition. The acquisition of the image is con trolled by the external control signal SHUTTER. The epc901 flags when a frame is ready for read-out by asserting theRead more
